Overview
The SA‑Pro is a self‑contained veterinary endoscope featuring a 5‑inch HD touchscreen (800×480). Designed for fixed clinical settings, it supports non‑invasive exams, lesion detection, biopsy sampling, cavity irrigation, and air insufflation in dogs, cats, cattle, horses, and other animals. The integrated, lightweight design reduces equipment costs while improving diagnostic efficiency.
All‑in‑one operation – Built‑in display, controls, and storage. Ready to use at power‑on – no external devices needed.
3‑second probe swap – Type‑C quick‑change interface with locking ring. One host fits multiple animal sizes and examination sites.
Physical buttons + touchscreen – Full function keys and 360° mechanical joystick. Supports capture, record, freeze, brightness adjustment, articulation, and brake lock.
Multiple expansion ports – Mini HDMI, Type‑C, TF card slot. Connect to an external monitor for split‑screen display; supports local storage and firmware updates.
High‑definition imaging – 0–3 level LED brightness, 5× partial zoom. Clear visualization of fine lesions.
Durable & hygienic – Probe IP67 (immersion‑proof disinfection), host IP54. Medical‑grade polyurethane shaft – flexible, kink‑resistant, abrasion‑resistant.
Long battery life – Removable 3.7V/5000mAh lithium battery. 4 hours continuous runtime, ≤2.5 hours charging. Short‑circuit protection.
High-definition imaging, clear field of view
Equipped with 160,000 / 500,000 / 1,000,000 pixel modules, it adapts to different inspection needs, producing clear images with rich details.
With a 120°-140° field of view design, it offers a wide observation range and reduces blind spots.
Depth of field range 5-100 mm, clear imaging at both near and far distances.
Front-facing LED lighting with adjustable brightness levels from 0 to 3 to ensure optimal viewing.
Specifications to meet the inspection needs of different parts.
The tube probe connects quickly via a Type-C interface, allowing for rapid replacement.
It can be adapted to different animal body sizes and examination sites (such as the respiratory tract and digestive tract).
A single main unit paired with multiple tube significantly reduces equipment procurement and maintenance costs.
The Y-type valve integrates air injection, water injection, suction, and instrument channels.
Connecting a manual airbag allows for cavity expansion, improving the field of vision.
Connecting a syringe allows for water flushing of the lens or aspiration of fluid, maintaining clear vision during surgery.
It supports the insertion of disposable consumables such as biopsy forceps and cell brushes to complete the sampling operation.

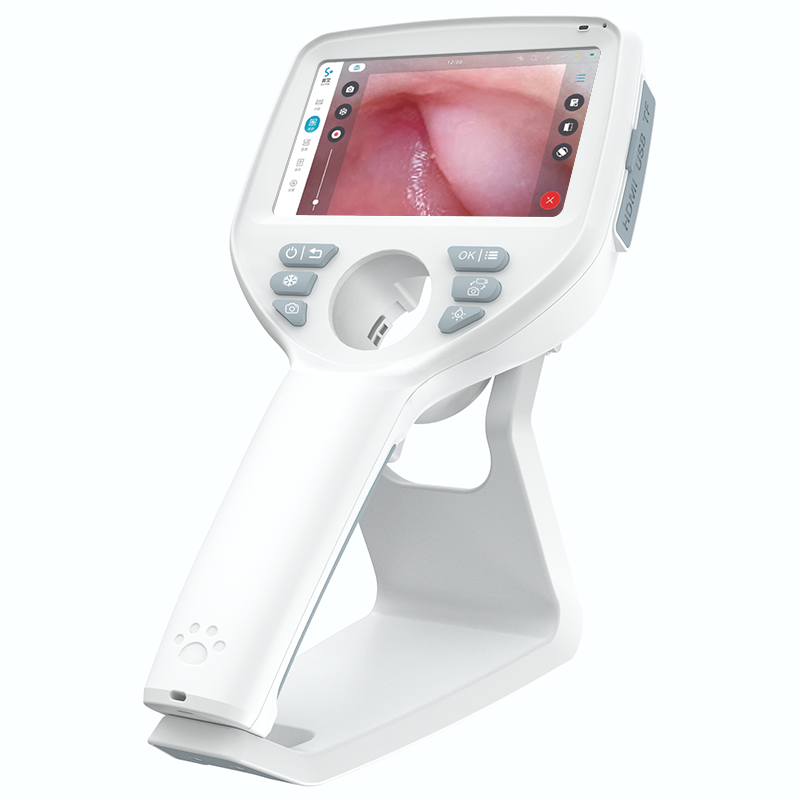

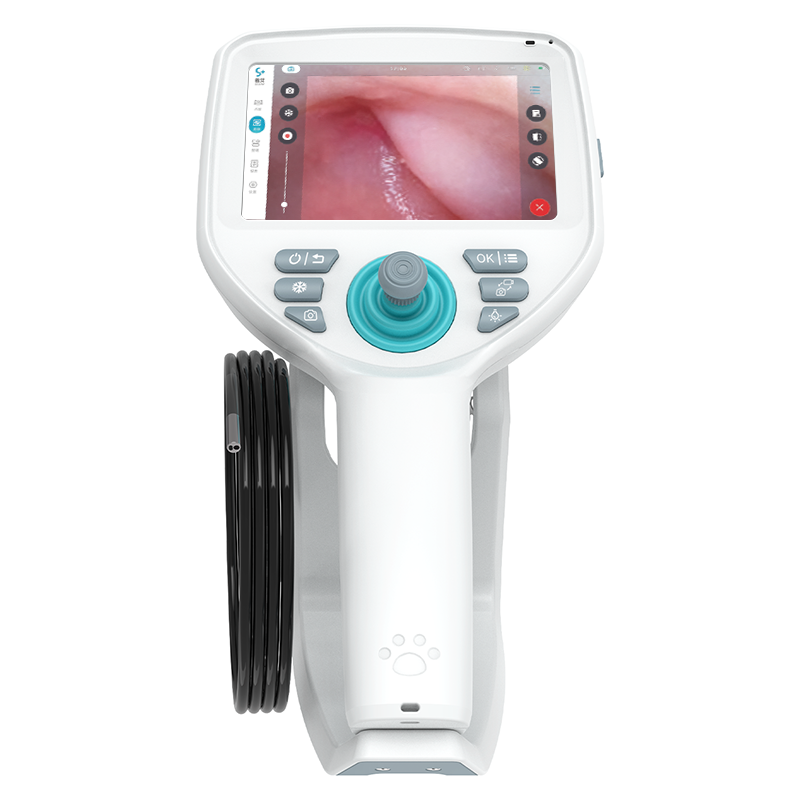

SA-Pro: 5-inch HD screen (800x480) , ready to use right out of the box, intuitive operation.
Supports MicroHDMI external monitors for split-screen display.
SA-Air: Wireless connectivity design, can connect to mobile phones/tablets via Wi-Fi or wired connection.
Core functions are controlled via a dedicated app, facilitating image management and communication with clients.
Easy to operate and user-friendly
The main unit integrates physical buttons for taking photos, recording videos, freezing, and adjusting lighting, making it intuitive to operate.
The joystick-controlled probe offers 360° omnidirectional guidance, flexible steering, and precise positioning.
Supports rapid image freezing for easy capture of transient lesions.
Menu-driven system settings support adjustment of image parameters such as brightness and color.
Efficient human-computer interaction, one-click report generation
Safe, durable, and easy to maintain
The probe has an IP67 protection rating, is immersion-washable, and meets clinical disinfection requirements.
The tube uses polyurethane tubing, which is flexible, resistant to bending, and wear-resistant.
Long battery life and strong expandability
Built-in 3.7V/5000mAh high-capacity lithium battery, providing continuous working time of ≥4 hours.
Supports Type-C charging for convenient charging and compatibility with common charging devices. Supports TF card expansion storage up to 32GB to meet medical record storage needs.
Supports importing and exporting images/videos via data cable, facilitating medical record archiving and sharing.
检查犬猫胃炎、胃溃疡、肠道息肉等病变;
定位并取出误吞的骨头、玩具、鱼钩等消化道异物;
通过器械通道插入活检钳进行组织取样，辅助诊断肿瘤或炎症。
观察鼻腔、喉部、气管内的炎症、出血或异物(如草籽、毛发);
辅助诊断犬猫慢性咳嗽、打喷嚏、呼吸困难等病因;
在直视下进行局部冲洗或分泌物抽吸，改善通气。
在外科手术中辅助确认病灶位置;
术后检查创面愈合情况或有无残留异物;
减少二次开刀风险，提升手术精准度。
实时将内窥图像传输至外接显示器或手机，供助手、学生观摩学习;
向宠物主人展示病灶图像，直观解释病情与治疗方案，提升信任与配合度;
胃肠道检查:胃炎、异物、溃疡、息肉等诊断与活检。
Main Unit | |
Parameter | Specification |
Display | 5" HD touchscreen, 800×480 |
Operation | Physical buttons + joystick + touchscreen |
Wireless | Not supported |
Image Functions | Capture, record, freeze, 5× partial zoom |
File Format | JPEG/BMP, MP4 |
Light Adjustment | LED, 0–3 levels |
Storage | Optional TF card (8GB–32GB) |
Interfaces | Mini HDMI, Type‑C, TF slot |
Languages | 10+ (CN, EN, JP, KR, FR, DE, RU, etc.) |
Firmware Upgrade | USB, TF card |
Dimensions | 260×140×88 mm |
Weight (with battery) | 0.5 kg |
Tube System | |
Parameter | Specification |
Diameter | Φ3.9mm (160k/500k pixels), Φ5.8mm (1M pixel) |
Field of View(FOV) | Φ3.9mm: 120° ; Φ5.8mm: 140° |
Depth of Field | 3–50 mm |
Steering Control | Mechanical-controlled joystick, 360° all-way articulation |
Bending Angle | 180°–210° |
Tube Material | Medical‑grade polyurethane |
Tube Length | 100 cm |
Connection | Type‑C, 3‑second quick‑swap |
Protection | Probe IP67 (dust-tight and waterproof; supports immersion disinfection) Main unit IP54 |
Power & Environment | |
Parameter | Specification |
Battery | 3.7V/5000mAh removable |
Runtime | 4 hours |
Charging Time | ≤2.5 hours |
Operating Temp. | Main unit: –10°C to 50°C; Probe: –20°C to 60°C |
Storage Temp. | –20°C to 60°C |
Humidity | 15%–90% |
